An oil cooler is a crucial device in a generator set used to cool lubricating oil, ensuring the oil maintains a suitable temperature during equipment operation. This extends the service life of the lubricating oil and reduces equipment wear. The following details the specific application systems, functions, and locations of oil coolers in generator sets.
1. Lubricating Oil System of a Turbine Generator Set
Functions:
- Cooling Lubricating Oil: The primary function of an oil cooler is to reduce the temperature of the lubricating oil . High temperatures can accelerate oil oxidation, leading to a decrease in its lubricating properties and potential damage to the equipment. The oil cooler uses heat exchange to lower the oil temperature to a suitable range, ensuring it maintains good lubrication properties during circulation.
- Extending Lubricating Oil Life: By maintaining the lubricating oil temperature within a suitable range, the oil cooler effectively extends its service life, reduces the frequency of oil changes, and lowers maintenance costs.
- Reducing Equipment Wear: Keeping the lubricating oil at an appropriate temperature prevents the decrease in viscosity caused by high heat, thereby reducing equipment wear and improving operational efficiency and reliability.
Application Locations:
- Lubricating Oil Circulation System: Oil coolers are typically installed on the return line of the lubricating oil circulation system . Before the oil returns to the tank, it passes through the cooler. This design ensures the oil is cooled before entering the tank, maintaining a stable system temperature.
- Oil Tank Bypass: In some systems, the oil cooler can be installed on a bypass line from the oil tank . This design diverts a portion of the oil to the cooler and then returns it to the tank, reducing the impact on the main circulation system and improving cooling efficiency.
2. Seal Oil System of a Generator
Functions:
- Cooling Seal Oil: In the generator's seal oil system, the oil cooler is used to cool the seal oil . Seal oil prevents hydrogen leaks while also lubricating and cooling the sealing rings. Cooling the seal oil ensures it maintains good lubricating properties under high temperature and pressure, reducing wear on the sealing rings.
- Maintaining Sealing Performance: By keeping the seal oil temperature within a suitable range, the oil cooler ensures its viscosity and fluidity are maintained, which is essential for the effective operation of the sealing system and for preventing hydrogen leaks.
Application Locations:
- Seal Oil Circulation System: Oil coolers are installed on the return line of the seal oil circulation system . The seal oil passes through the cooler before returning to the tank. This ensures the oil is cooled before entering the tank, maintaining stable system temperature.
- Oil Tank Bypass: Similarly, in some systems, the oil cooler can be installed on a bypass from the oil tank . This design diverts some seal oil for cooling and then returns it, reducing the impact on the main system and improving cooling efficiency.
3. Lubricating Oil System of an Exciter
Functions:
- Cooling Exciter Lubricating Oil: In the exciter's lubricating oil system, the oil cooler cools the oil used to lubricate and cool the exciter's bearings and rotor components. This ensures the oil maintains good lubricating properties at high temperatures, reducing equipment wear.
- Maintaining Equipment Operation: By keeping the oil temperature within a suitable range, the oil cooler ensures the exciter operates normally and reduces equipment failures caused by high temperatures.
Application Locations:
- Lubricating Oil Circulation System: The oil cooler is installed on the exciter's lubricating oil return line . Oil is cooled before it returns to the tank, maintaining stable system temperature.
- Oil Tank Bypass: In some systems, the oil cooler can be installed on an oil tank bypass , cooling a portion of the oil and returning it to the tank. This design minimizes the impact on the main circulation system and increases cooling efficiency.
4. Working Principles of an Oil Cooler
Water-Cooled Oil Cooler:
- Working Principle: Lubricating oil passes through the cooler's tube bundle, where it exchanges heat with cooling water . The cooling water absorbs heat from the oil, lowering the oil's temperature. The cooling water typically comes from a cooling tower or a closed-loop system to ensure a low temperature for effective cooling.

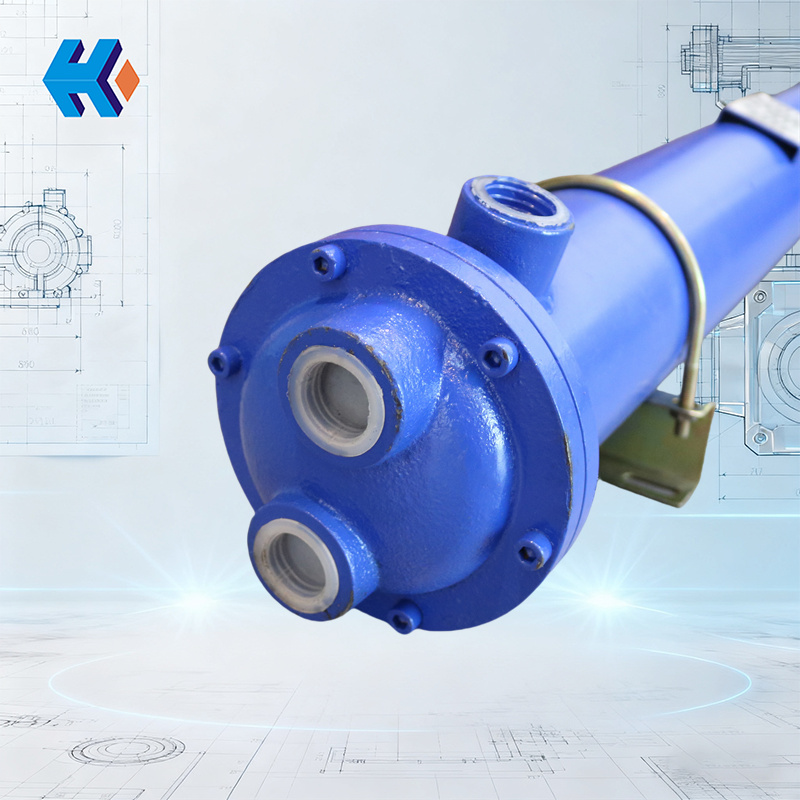

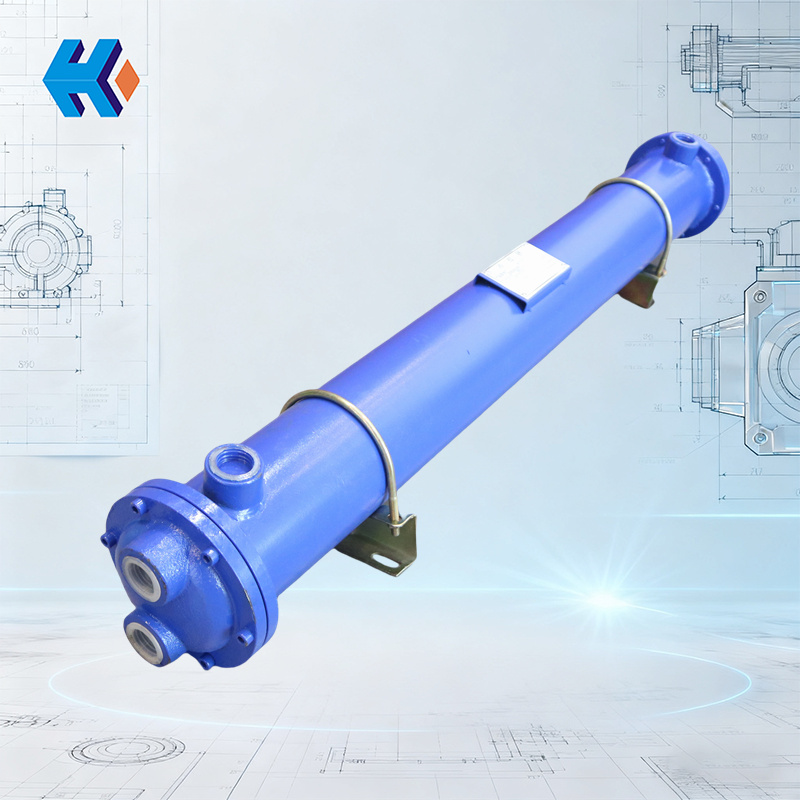

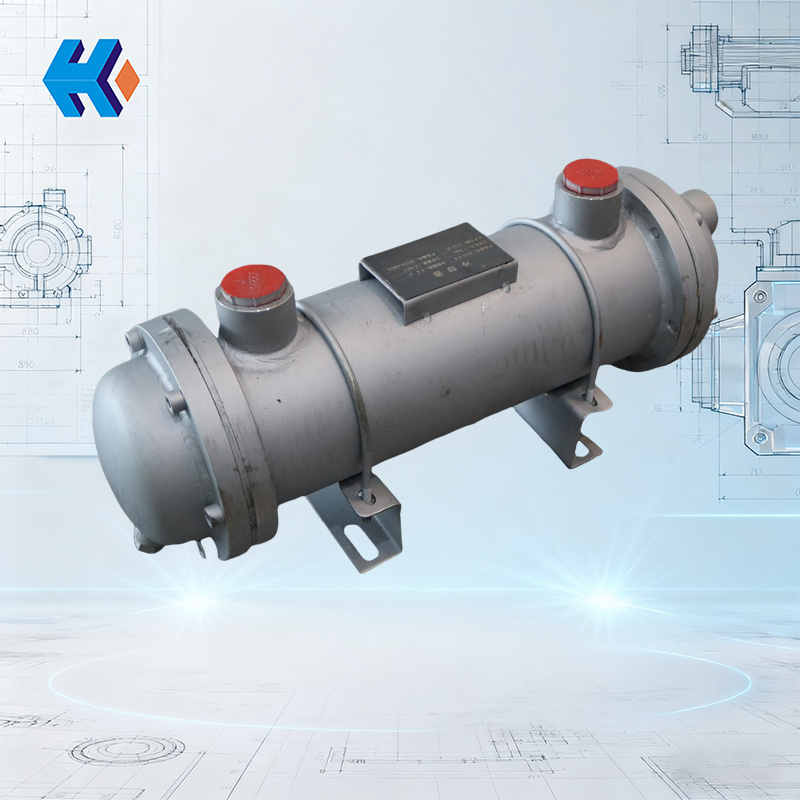

- Design Features: Water-cooled oil coolers usually have a shell-and-tube design , with the oil flowing inside the tubes and the cooling water flowing in the shell, exchanging heat through the tube walls.
Air-Cooled Oil Cooler:
- Working Principle: Lubricating oil passes through the cooler's fins, where it exchanges heat with air . A fan blows air over the fins, absorbing heat from the oil and lowering its temperature.
- Design Features: Air-cooled oil coolers typically use a finned-tube design to increase the heat dissipation area and improve heat exchange efficiency.
