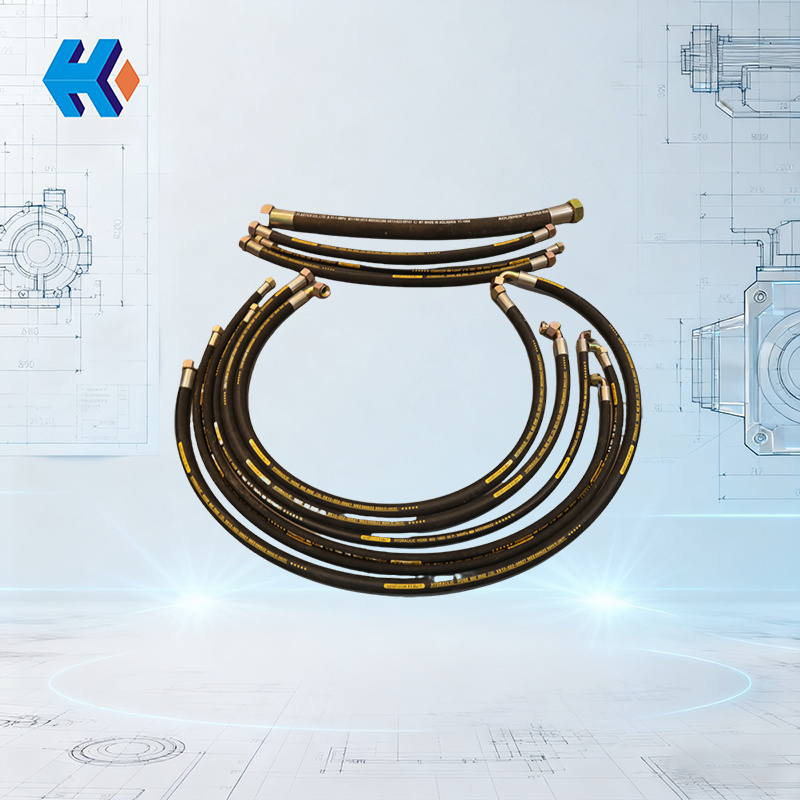

Hydraulic Oil Pipe 18-PK34-100 for HU25044-222G Induced Draft Fan

Description Of Hydraulic Oil Pipe 18-PK34-100 for HU25044-222G Induced Draft Fan

The 18-PK34-100 hydraulic oil pipe plays a crucial role in ensuring the smooth operation of the hydraulic system of the HU25044-222G induced draft fan.

The 18-PK34-100 hydraulic oil pipe is composed of multiple layers. The inner layer is made of special synthetic rubber with excellent oil resistance and sealing performance, directly contacting the hydraulic oil to prevent leakage and ensure stable pressure transmission. For example, in high-pressure systems, this inner layer can withstand high pressure without deformation or leakage. The middle layer is a reinforcement layer, typically made of high-strength steel wire braided or fiber materials, providing high tensile strength and pressure resistance to withstand the high pressure generated by the hydraulic pump. The outer layer is also made of synthetic rubber, offering good weather and wear resistance, protecting the inner layers from external damage such as scratches, impacts, and corrosion.

working principle  of Hydraulic Oil Pipe 18-PK34-100 for HU25044-222G Induced Draft Fan

The working principle of the 18-PK34-100 hydraulic oil pipe is to transmit pressurized hydraulic oil from the pump to various components of the fan, such as the actuator for blade angle adjustment. When the hydraulic pump in the oil station (the HU25044-222G fan uses a combined oil station with shared tank and cooling system for lubrication and control) pressurizes the oil, the pipe withstands the pressure and directs the oil to the required components. The oil then applies force to the actuator, changing the blade angle to adjust the fan’s airflow and pressure to meet different operational needs.
