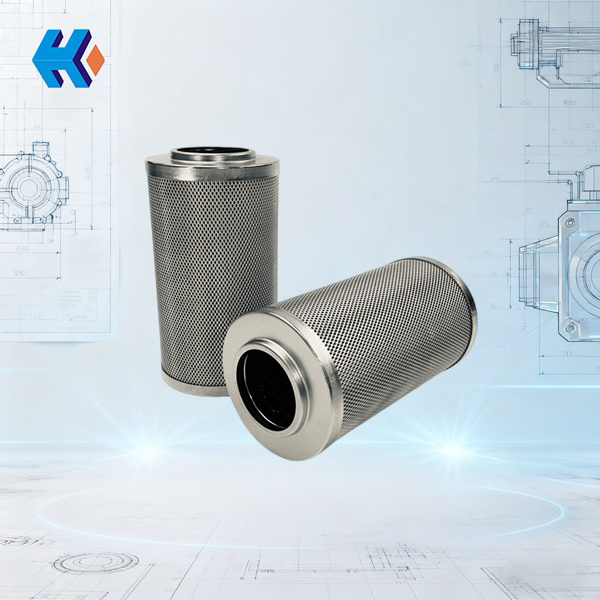

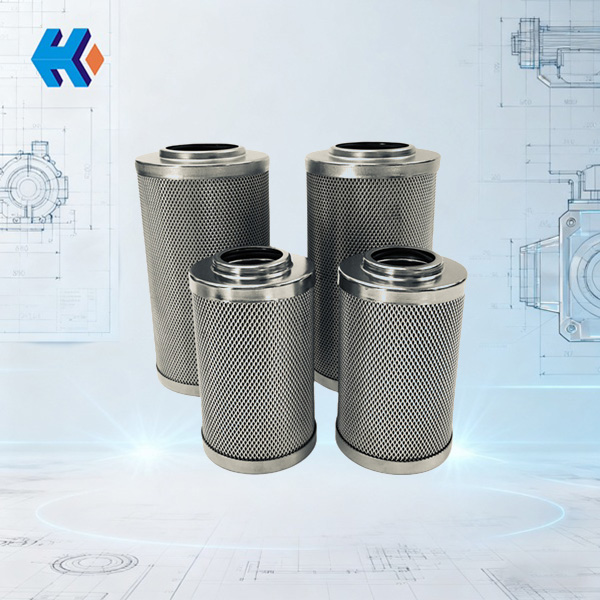

DF0110D3BN/HC Pressure Line High-Pressure Filter Element
>> Basic Product Features
The DF0110D3BN/HC Pressure Line High-Pressure Filter Element is a critical filtration component in industrial hydraulic systems, specifically designed for high-pressure line environments. It maintains stable filtration performance under high-pressure conditions, ensuring clean operation of the hydraulic system.
Applicable Scenarios
This high-pressure line filter element is widely used in hydraulic systems across various industrial sectors, including rolling mill hydraulic systems in the metallurgy industry, hydraulic transmission systems in construction machinery, hydraulic control systems in steam turbines, generators, and hydraulic auxiliary systems in the power industry, among others. In these scenarios, the hydraulic system must withstand prolonged high pressure, and the medium is prone to contamination by impurities such as metal shavings, dust, and sludge. The DF0110D3BN/HC filter element effectively intercepts these contaminants, preventing system failures.
Core Structure
The DF0110D3BN/HC filter element utilizes a high-strength filter media, offering excellent pressure resistance and impact tolerance to suit the working environment of high-pressure lines. The sealing structure of the element is rigorously designed to prevent unfiltered media from bypassing the seal, ensuring effective filtration. Furthermore, the overall structure of the element facilitates easy installation and removal, reducing the difficulty of subsequent maintenance.
>> Core Function and Value
Protection of Hydraulic Components
Precision components in hydraulic systems, such as hydraulic pumps, valve blocks, and cylinders, are highly sensitive to contaminants. Even tiny impurities entering these components can cause wear, sticking, and other issues, affecting their normal operation. The DF0110D3BN/HC filter element accurately intercepts contaminants in the line, preventing them from entering precision components, reducing the probability of component failure, and lowering equipment repair costs.
Extension of System Life
The presence of impurities accelerates the aging of the hydraulic system and shortens its overall service life. Continuous filtration by the DF0110D3BN/HC filter element maintains the cleanliness of the hydraulic medium, reduces corrosion and wear on internal system components caused by medium contamination, extends the operating cycle of the hydraulic system, and enhances the overall utilization efficiency of the equipment.
>> DF0110 Series Filter Element Selection Guide
Hydraulic systems operating under different conditions have varying requirements for filter element filtration accuracy. The table below lists common filter element models in the DF0110 series, including DF0110D3BN/HC and other models in the same series, along with their corresponding LEEMIN filter element models, making it convenient for users to select based on actual needs.
| Filter Element Model | Filtration Accuracy (μm) | Applicable Medium | Equivalent to LEEMIN Filter Element Model | Suggested Application Scenario |
|---|---|---|---|---|
| DF0110D3BN/HC | 3 | Hydraulic Oil, Lubricating Oil | LH0110D3BN/HC | High-pressure lines with precision valve blocks or servo systems downstream |
| DF0110D5BN/HC | 5 | Hydraulic Oil, Lubricating Oil | LH0110D5BN/HC | Hydraulic transmission systems with general accuracy requirements |
| DF0110D10BN/HC | 10 | Hydraulic Oil, Lubricating Oil | LH0110D10BN/HC | Hydraulic actuation systems with lower sensitivity to impurities |
| DF0110D20BN/HC | 20 | Hydraulic Oil, Lubricating Oil | LH0110D20BN/HC | High-pressure lines with low medium contamination levels |
When selecting, it is necessary to consider the working pressure of the hydraulic system, the level of medium contamination, and the accuracy requirements of downstream components. If the system medium contains small contaminant particles and downstream components require high precision, prioritize a high-accuracy filter element like the DF0110D3BN/HC. If the system has less stringent filtration accuracy requirements, models such as DF0110D10BN/HC or DF0110D20BN/HC can be chosen to balance filtration effectiveness and usage cost.
>> Usage and Maintenance Essentials
Replacement Cycle
The replacement cycle for the DF0110D3BN/HC filter element should be adjusted based on the operational intensity of the hydraulic system and the level of medium contamination. Generally, when the differential pressure across the filter element reaches the system's set alarm value, the element must be replaced promptly. If the system lacks a differential pressure alarm device, it is recommended to regularly check the element's condition during routine inspections to prevent increased system pressure loss or filtration failure due to element clogging.
Installation Precautions
Before installing the DF0110D3BN/HC filter element, the filter housing cavity must be cleaned to prevent residual contaminants inside the cavity from entering the hydraulic system during installation. Ensure the element's sealing surface is properly sealed with the filter cavity during installation to prevent medium bypass at the seal, which would compromise the filtration effect. After installation, the system needs to be bled to prevent air from entering and affecting normal operation.
Procurement and Service Support
If you need to purchase the DF0110D3BN/HC pressure line high-pressure filter element or have requirements for other models in the DF0110 series, please contact us directly. We offer in-stock supply services for the DF0110D3BN/HC element and support bulk purchase customization, enabling rapid dispatch according to your order needs to ensure your production schedule remains unaffected.
Furthermore, our technical team can provide professional guidance on filter element selection. If you are unsure which precision filter element is suitable for your hydraulic system, please inform us of your system's working pressure, medium type, and downstream component information, and we will recommend the most suitable model, such as DF0110D3BN/HC, DF0110D5BN/HC, etc.
We also provide technical support for maintenance and replacement issues encountered during use, helping you resolve various questions regarding filter element usage to ensure the element consistently delivers optimal filtration performance.
If you would like to know the detailed quotation for the DF0110D3BN/HC filter element or require samples for testing, please feel free to contact us. We are committed to providing industrial enterprises with cost-effective high-pressure line filter elements, contributing to the stable operation of your hydraulic systems and reducing equipment maintenance costs.
