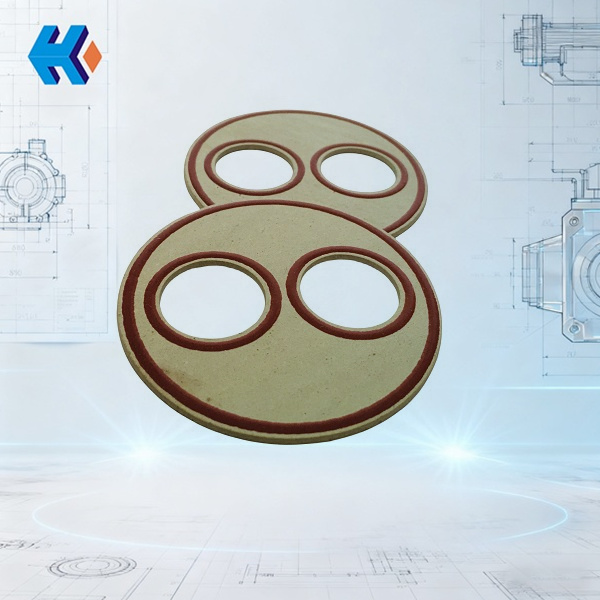

TY9112 Servo Valve Seal: Core Component for Primary Fan Stability

ꁆ ꁇ

Product Overview

The TY9112 Servo Valve Dedicated Seal is a high-performance solution designed to meet the precise sealing requirements of servo valves in power plant primary air (PA) fans. Developed specifically for the extreme operating conditions of adjustable-pitch axial flow fan spares, this product maintains outstanding sealing performance and long-term reliability under continuous exposure to high temperatures, high pressure, and chemical media.

As a critical component in power plant overhaul and maintenance work, the TY9112 seal strictly adheres to power plant equipment operating standards. Both its material selection and structural design aim to satisfy the rigorous demands of servo valves for precise motion and zero leakage, thereby ensuring accurate response and stable operation of the fan's control system.

Technical Features and Advantages

1. Exceptional Environmental Resistance

Wide Temperature Adaptability: Maintains elasticity and sealing integrity across a temperature range of $-40^\circ\text{C}$ to $+200^\circ\text{C}$ ($-40^\circ\text{F}$ to $+392^\circ\text{F}$), effectively handling various operating conditions from cold start-up to full-load operation of the fan servo system.
Excellent Media Compatibility: Demonstrates superior resistance to mineral oil and phosphate ester hydraulic fluids (including commonly used fluids like Skydrol LD-4), preventing sealing failure due to swelling or aging.
Anti-Aging Performance: After thermal air aging test at $150^\circ\text{C}$ for 168 hours, the retention rate of key properties exceeds 80%, significantly extending the replacement cycle.

2. Precision Design and Reliable Quality

Precision Compression Molding: Manufactured using high-precision molds, ensuring excellent dimensional stability and a perfect fit with the valve body.
Low Compression Set: Special polymer formulation provides superior elastic recovery, maintaining a good seal even after long-term compression.
Uniform Material Structure: Seamless and without weak points, preventing early failure caused by localized wear.

3. Extended Service Life

Enhanced Wear Resistance: Addition of special fillers significantly boosts anti-wear capability, accommodating the high-frequency adjustment characteristics of servo valves.
Anti-Extrusion Design: Optimized cross-section shape and material hardness combination effectively resist extrusion deformation under high pressure.
Installation Friendliness: Reasonable hardness design balances easy installation with sealing reliability.

Application Scenarios

The TY9112 seal is specifically designed for the following applications:

Power Plant Primary Air Fan Servo Control Systems: Especially the hydraulic adjustment systems of adjustable-pitch axial flow fans.
Hydraulic Actuators of Various Industrial Fans: Including servo valve sealing for critical equipment like induced draft fans (ID fans) and forced draft fans (FD fans).
Power Plant Periodic Overhaul and Preventive Maintenance: As an essential seal for primary fan servo valves during major overhauls and spare parts replacement.

Selecting the TY9112 Seal

Choosing the TY9112 Seal as your power plant fan sealing solution means:

Reduced Unplanned Downtime: High-quality seals lower the risk of unexpected leakage, increasing equipment availability.
Extended Maintenance Cycles: Superior anti-aging properties significantly prolong the replacement interval compared to traditional seals.
Lower Total Cost of Ownership (TCO): Longer service life per replacement reduces spare parts inventory and labor costs.
Ensured System Safety: Reliable sealing prevents hydraulic oil leakage, mitigating potential fire hazards and environmental pollution.
