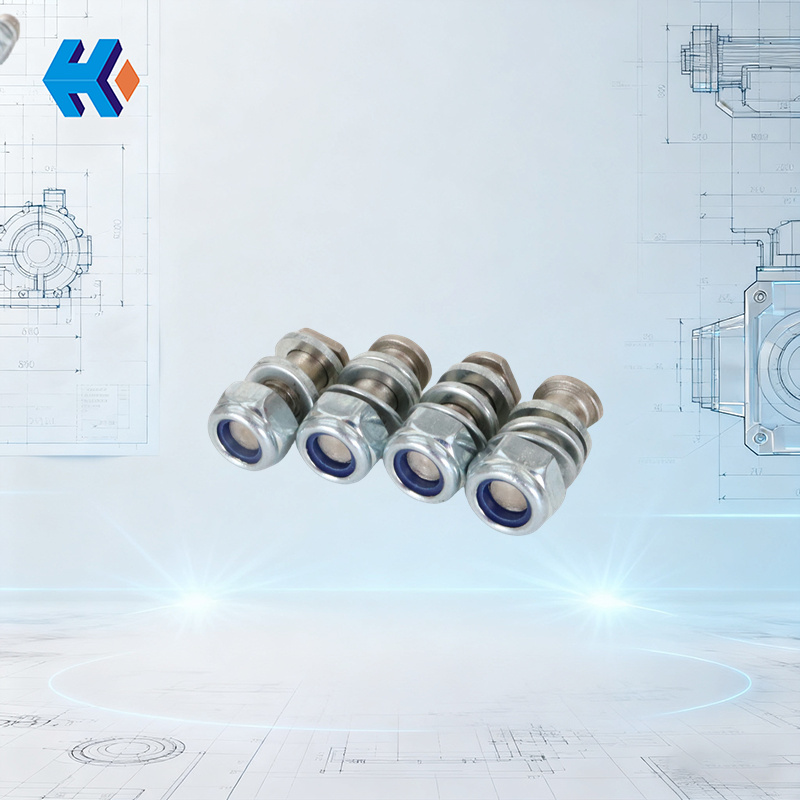

4TY0088 Connecting Pin Assembly for Industrial Blower

Description of 4TY0088 Connecting Pin Assembly  for Industrial Blower

In the mechanical transmission system of large industrial blowers, the connecting pin assembly serves as a key link for power transmission and structural positioning, and its reliability directly affects the operational stability and service life of the entire machine. This article focuses on the connecting pin assembly 4TY0088, a high-strength connecting component specifically designed for the FAF18-10-1 blower. Through precision structural design, high-quality material selection, and strict process control, design, effectively reducing airflow resistance and improving gas delivery efficiency. This design not only enhances the impeller’s fatigue resistance but also reduces noise and vibration during operation, providing reliable assurance for the smooth operation of the blower.

working principle of 4TY0088 Connecting Pin Assembly  for Industrial Blower

connecting pin assembly 4TY0088 is closely connected with the transmission and positioning mechanism of the equipment. In the transmission application, taking the elastic sleeve column pin coupling as an example, when the power source drives the half coupling on one side to rotate, the column pin will move synchronously. Since the column pin is placed in the flange holes of the two half couplings and connected to the hole wall through the elastic sleeve, the power will be transmitted to the half coupling on the other side through the column pin, and then drive the equipment connected to it. The parts run. In this process, the elastic sleeve can play a certain role in buffering and vibration absorption, effectively reducing the impact of the impact load on the transmission system due to the start, stop or operation of the equipment, and at the same time, it can also play a role in the micro-offset between the two axes. Compensation to ensure the smoothness of power transmission. In terms of positioning, the 4TY0088 connecting pin assembly can be used as a positioning pin, which is tightly fixed in the corresponding hole by interference fit, accurately determining the relative position between the parts, preventing the displacement of the parts during the operation of the equipment, and ensuring the accuracy of the cooperative work between the various parts of the equipment.
