Intermediate Shaft A266D00-SKA: Achieving Precision Alignment to Eliminate Vibration

In the routine maintenance of Induced Draft (ID) fans, issues such as high vibration, abnormal bearing wear, or even coupling failure often trace back to one critical factor: the alignment precision between the intermediate shaft and the motor-side half coupling.

Today, we will thoroughly analyze how to achieve precise alignment, the chain reaction caused by misalignment, and share a solution that enhances transmission stability at the source.

I. Standards and Methods for Precision Alignment

According to GB/T 1236-2017 (Industrial Ventilators – Performance Testing) requirements for mechanical operation stability, ID fan alignment correction must adhere to rigorous precision standards. This is not merely "connecting the shafts"; it is a sophisticated adjustment process.

The Three Types of Misalignment:

1. Parallel (Radial) Misalignment: The centerlines of the two shafts are parallel but not coaxial.
2. Angular Misalignment: The centerlines of the two shafts intersect at an angle.
3. Axial Misalignment: The gap between the two shaft ends is incorrect.

In practical application, these three deviations often coexist and require comprehensive correction.

Standard Procedure for Achieving Precision Alignment:

1. Foundation Preparation: Ensure the motor and fan base are solid and free of settlement. This is the prerequisite for all adjustments.
2. Rough and Fine Adjustment: Start with a straight edge for rough adjustment. Then, a dial indicator (or laser alignment system) must be used for precise measurement,recording both radial and face readings.
3. Calculation and Correction: Based on the measurement data, precisely correct the radial and angular misalignment by adjusting the thickness of shims under the motor feet. This entire process demands patience and meticulousness

II. A Warning: The Deadly Impact of Misalignment

Poor ID fan alignment is a non-negotiable issue. It acts like a time bomb, triggering a cascade of severe equipment failures:

• Primary Impact: Increased Vibration and Noise. Misalignment forces the coupling to endure additional alternating stresses, causing forced vibration. This is one of the most common causes of high fan vibration.
• Chain Reaction: Bearing and Seal Failure. Abnormal vibration is first transmitted to the motor and fan bearings, leading to abnormal wear and temperature increase. This, in turn, affects connected components like seal rings and oil scraper rings, causing premature seal failure and lubricant leakage.
• Extreme Consequence: Component Fatigue Failure. Long-term operation in a misaligned state results in metal fatigue of the intermediate shaft, coupling bolts, and even blade bolts due to immense alternating stress. This can lead to catastrophic accidents such as coupling fracture or twisted drive shafts, incurring massive economic losses.

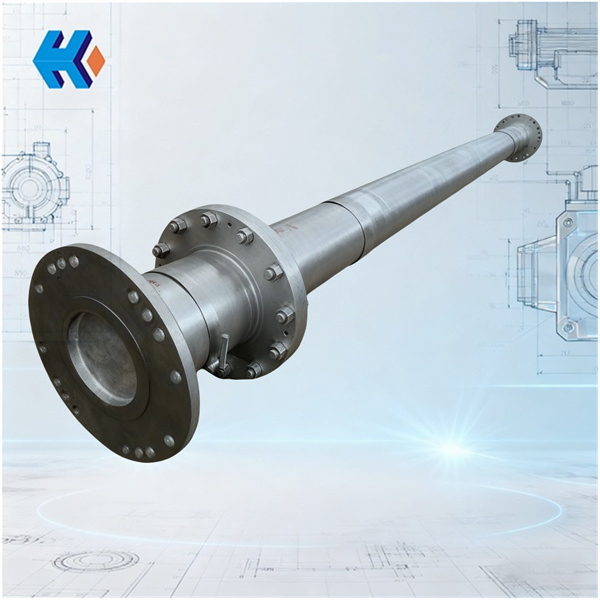

III. The Root Solution: High-Precision Components – Intermediate Shaft A266D00-SKA

To achieve and maintain precise alignment long-term, coupled with standardized procedures, selecting high-quality transmission components is the fundamental remedy. Therefore, I strongly recommend the A266D00-SKA Intermediate Shaft. This product is specifically engineered to enhance alignment stability and transmission efficiency:

• Superior Manufacturing Precision: Strict control is maintained from material selection to fine machining, ensuring the straightness of the shaft body, the concentricity of the coupling mating surfaces, and the keyway accuracy. This provides the perfect hardware foundation for achieving precision alignment on-site.
• Excellent Dynamic Balance Performance: The shaft undergoes high-precision dynamic balancing correction before leaving the factory, effectively reducing initial vibration caused by its own imbalance and simplifying the alignment process.
• High Fatigue Strength: Optimized heat treatment processes grant the shaft excellent overall mechanical properties, allowing it to better withstand alternating operational stresses and extend its service life.

Choosing the A266D00-SKA Intermediate Shaft is equipping your ID fan transmission system with a "strong spine."

IV. Comprehensive Professional Support Ecosystem

A successful repair requires systemic support. Therefore, we not only provide the core A266D00-SKA Intermediate Shaft but also a complete set of high-quality spares:

• Coupling Mates: Fan-Side Half Coupling which pairs perfectly with the intermediate shaft.
• Critical Fasteners: Pin and Blade Bolt DTYD60UG005.
• Bearing System Spares: Bearing TY520100, Spacer Ring DTYD100UZ006, and Hub O-Ring DTP D60LG016.
• Vane Adjustment: Regulating Ring DTYD100LG002.
• Core Flow Components: Blade HU25242-22 and Sealing Components: Seal Ring HU27050-22 and Oil Scraper Ring I UZ22000(DY).

Precision alignment is the cornerstone of stable equipment operation. When facing challenges like high fan vibration and abnormal bearing wear, choosing a precision intermediate shaft like the A266D00-SKA, combined with standardized maintenance, is the definitive way to eliminate hidden dangers and ensure long-term, safe unit operation.

HKZX-2025-10-28
