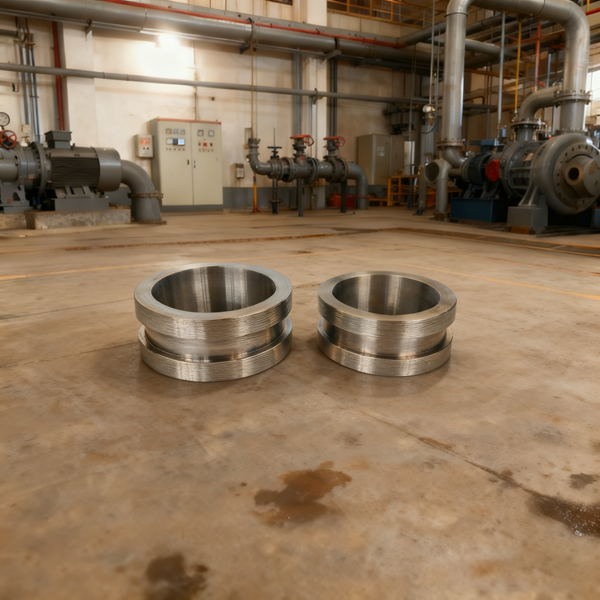

Shaft Sleeve HZB253-640-01-13: The Shaft Protection Shell for the Booster Pump

In the drive system of the HZB253-640 boiler booster pump, the shaft sleeve HZB253-640-01-13 is an easy-to-miss, but essential, part. It sits on the pump shaft's seal section and bearing area. It's the pump shaft's protection shell. If this part wears out, the pump shaft is damaged directly. The seal fails and leaks. In severe cases, the entire booster pump must shut down. Many power plants learned this the hard way.

I. The Sleeve's Core Job: Guard Shaft + Keep Seal

This HZB253-640-01-13 shaft sleeve is custom-made for the HZB253-640 booster pump. Material is 1Cr13 martensitic stainless steel. Reliable rust resistance and heat resistance.

• It separates the pump shaft from direct friction with seals and bearings. The sleeve is wear-resistant. Changing the sleeve is cheaper than changing the pump shaft.
• It's the seal system's reference seat. O-rings and seal gaskets rely on it for positioning. A straight install means a tight seal.
• Installation needs precise fit. The clearance with the pump shaft is strictly 0.02-0.05mm. Concentricity must also be checked.

II. The Key to Toughness: Material, Hardness, and Craft Must Be Right

1Cr13 Stainless Steel: The Right Material for Toughness

The sleeve temperature can hit 280°C. Plus, steam corrosion. 1Cr13 stainless steel handles this. Hardness and strength are stable below 300°C. Unlike plain carbon steel sleeves, which rust and wear fast. Dongfang SRI sleeves are material-tested before leaving the factory.

Hardness Control: Balancing Wear Resistance and Toughness

This sleeve uses a tempering treatment. Hardness is held at HB 200-250 (HRC 28-32). Much harder than standard sleeves, but still tough. Actual tests show it lasts 3 times longer than carbon steel sleeves. Some plants used it for 18,000 hours without change.

Precision Machining: Detail Controls Sealing Quality

The process is key: rough machining, then tempering, then fine grinding and polishing. Surface roughness for the mating face is held under Ra 0.4μm. The sleeve ends have a 30°±2° rounded chamfer. Won't scratch the O-ring during install.

III. Maintenance Scenarios: When and How to Change?

Daily Running: Less Shaft System Failure

In thermal and nuclear plant feed systems, the booster pump with this sleeve sees a 65% lower shaft system failure rate. The sleeve blocks friction and corrosion. The pump shaft stays in good shape.

Repair Change: Use These Standards

The repair manual sets rules: change the sleeve after 12,000 hours of total running. Or if surface wear is over 0.2mm. Or corrosion area is over 5%. Or hardness drops below HB 180. Don't use non-standard parts. Dongfang SRI sleeves match the original parts exactly. They fit right on. No extra machining needed. Saves a lot of repair time.

Technical Upgrade: Old Pumps Can Be New

Many old pumps have sleeves that lack hardness. Seals always fail. Switching to the HZB253-640-01-13 sleeve boosts shaft system performance. No need to change the pump body structure. One plant extended overhaul time from 12,000 hours to 18,000 hours.

One-Stop Spares: Choose Dongfang SRI for Peace of Mind

booster pump maintenance needs the sleeve and seals to match. Dongfang SRI has the sleeve HZB253-640-01-13. We stock the full shaft seal set: O-rings, gaskets, etc. All parts follow original factory standards. Plenty in stock. Order, and we ship.

Changing parts, emergency fixes, or old pump upgrades—Dongfang SRI handles it. Our technical team can help you decide if the sleeve needs changing. You make fewer mistakes. Reliable spares keep the booster pump running steady.
