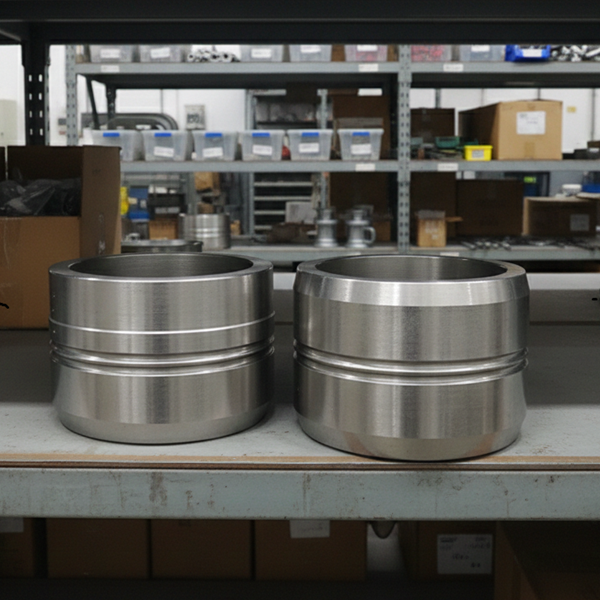

Shaft Sleeve HZB253-640-01-06: The "Shaft Journal Guardian" for the HZB253-640 Booster Pump

During the overhaul of the HZB253-640 boiler booster pump, the shaft sleeve HZB253-640-01-06 is a spare that everyone cares about but often messes up when choosing. It wraps around the pump shaft. It's supposed to protect the shaft from getting chewed up, handle radial load, and help the seal do its job. If the material or precision is bad, you swap it in, and soon you get shaft wear, pump shaking, maybe even a leak—tons of power plants have been burned by cheap, non-standard sleeves. You have to use the right stuff to keep things stable.

I. Custom Fit: A Perfect, No-Gap Deal for the HZB253-640

This sleeve isn't some generic part; it's custom-built for the HZB253-640 booster pump. The size and accuracy are taken straight from the pump's service manual. Once it goes on the pump shaft, it has to mate with the impeller wear ring and other bits exactly right. The installation job makes or breaks the pump's seal and its vibration levels. Dongfang SRI locks down the standards, from buying the raw material to checking the finished product. Every piece is a perfect, drop-in replacement for the original—no need to stop and machine it on site.

Its main jobs are simple, but vital: Stop the shaft's neck from wearing out (it's way cheaper to change a sleeve than the whole shaft); handle the load pushing sideways to keep the shaft running straight; and back up the seal to block leakage paths. If you lose even one of these three jobs, your booster pump starts to fall apart.

II. Why It Lasts: Hiding Strength in Material and Build

1Cr13 Stainless Steel: The Right Stuff for Heat and Water

The sleeve metal is 1Cr13 Stainless Steel, which meets the GB/T 1220 standard and has at least 11.5% Chrome. This metal resists oxidation and handles the water vapor and weak chemical stuff found in power plant industrial water. It won't rust away fast. We also handle a material density requirement between 4% and 5% for this application.

The heat treatment isn't skimped on either. We tweak the settings so the sleeve ends up with a stable, tempered structure inside, meaning no oversized grains or weak spots. The hardness stays put at HRC 28-32. Too hard means it snaps; too soft means it wears out too quickly. This range is the sweet spot that balances toughness and strength. Independent lab data shows its Tensile Strength is greater than or equal to 540 MPa, Yield Strength is greater than or equal to 345 MPa, and Elongation is greater than or equal to 20%. Even if the booster pump runs hard and fast for ages, it handles the force without giving up.

Precision Machining: Errors Kept Tighter Than a Whisper

The manual demands the sleeve-to-shaft clearance be tiny—between 0.02 mm and 0.05 mm. That accuracy takes multiple steps. First, CNC lathes do the rough sizing. Then, outer grinding machines do the final finish. The outer roundness error is less than or equal to 0.005 mm—thinner than a hair. The inner working surface is honed, making the roughness Ra less than or equal to 0.4 μm. It feels perfectly smooth, no sharp edges.

The inner bore also gets a surface hardening treatment, creating a layer with HRC 50-55 hardness. This makes it over 30% more wear-resistant than a normal sleeve. One plant told us that using this sleeve from Dongfang SRI extended their run cycle from 8,000 hours to 12,000 hours. That's one less shutdown, saving big time.

III. Needs Friends: These Spares Must Be Paired Up

The shaft sleeve is not a lonely part. It has to match perfectly with the oil seals, gaskets, and impeller wear rings. When you do the overhaul, you must check all of them together. If they don't fit right, you'll get failures. Here is the list of must-have matching spares:

Dongfang SRI can hand you all these matching spares in one shot. No need to run around comparing prices. When the parts match exactly, it makes selection easier and can actually boost your pump's running efficiency by 5% to 8% after the maintenance is done.

IV. When to Use It and How to Install It Right

When Do You Have to Change the Sleeve?

This sleeve is for HZB253-640 booster pump overhauls. Three times you must change it: routine maintenance after 8,000 pump operating hours; if the pump shaft is worn or scratched (you fix the shaft, you change the sleeve); or if the seal leaks (you swap the sleeve, oil seal, and gaskets all at once).

Big power plants across the country use it. It's proven stable for over 12,000 hours. One nuclear plant reported that after putting this sleeve in, their booster pump vibration dropped from 3.8 mm/s to 2.1 mm/s. Much smoother running.

Installation: Watch These Steps

You have to install it by the book, or even the best sleeve dies fast: First, clean all the oil and gunk off the pump shaft. Check the shaft's neck for roundness error (less than or equal to 0.01 mm), and fix any scratches first. Then, use the hot mounting method: heat the sleeve to 120-150°C, slide it fast onto the pump shaft's spot, and check the fit clearance after it cools—it must be between 0.02 mm and 0.05 mm. Last thing, check the coaxiality with the impeller wear ring and oil seal assembly; the error can't be more than 0.03 mm.

Dongfang SRI can send someone to guide the install, or you can call the tech team anytime with questions. If you buy in bulk, we can even help you plan your stocking schedule around your maintenance shutdowns so you never run short of spares.

Choosing the Right Sleeve: The Simple Way to Avoid Headaches

The whole protection of the HZB253-640 booster pump shaft is riding on this little sleeve. Dongfang SRI's HZB253-640-01-06 sleeve has the right material, the right precision, and all the matching parts you need. Every single one is inspected hard. Whether you're doing routine maintenance, a panic repair, or just stocking up spares, we deliver reliable parts and service.

Stop stressing over which sleeve to pick, and stop worrying about immediate failure after install. Dongfang SRI focuses on critical power plant spares, giving you everything from the sleeve to the full set of matching parts. It's simple and reliable. For any needs or technical questions, call us anytime, and we'll make sure your booster pump shaft always has a reliable neck protector.
