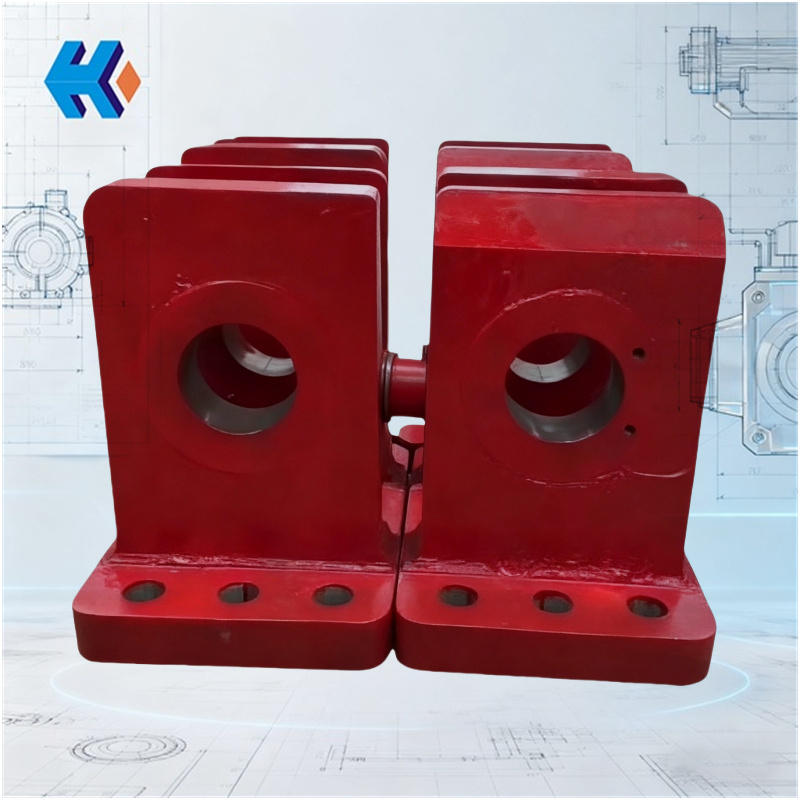

Pulverizer Vibration? The Hinge Pin Assembly 300MG31.11.11 is Likely the Culprit

The Critical Role of the Hinge Pin Assembly (HPA) in ZGM Pulverizer Stability

This seemingly minor component—the Hinge Pin Assembly (HPA)—is, in fact, the "Key to Force Transmission" within the coal pulverizer.

I. Understanding the "Small Part's" Big Impact

The pulverizer's grinding roller relies on force supplied by the hydraulic system to crush the coal. How is this force precisely transmitted to the Grinding Roller (29MG63.11.09)? Through the Hinge Pin Assembly.

• Function: It connects the hydraulic frame (the "force-exerting shoulder") to the grinding roller (the "working arm").
• Mission: It must stably transmit the grinding force and control the roller's direction of movement, ensuring the roller maintains the correct "Grinding Angle" relative to the grinding table liner. This is crucial—like ensuring a human arm moves with the right posture during work; otherwise, the force is insufficient or the "joint" gets strained.

The "ZGM123G Pulverizer Maintenance Procedures" explicitly state: During every major overhaul, the Hinge Pin Housing (02MG50.11.10.99) must be inspected for wear and the Hinge Pin (20MG40.11.11.02) for deformation. Damage necessitates immediate replacement.

Neglecting this "small part" inevitably leads to pulverizer instability and excessive vibration. Here are three common failure modes:

(I) Worn Hinge Pin Housing (300MG31.11.11): Roller "Drifting" and Liner Plate Collision

During the first dismantling inspection of a #3 unit pulverizer, we observed a "step" worn into the mating surface between the Hinge Pin Housing and the roller frame. The designed clearance of 3\text{-}5 had expanded to allow a 12 feeler gauge.

Analogy: "This is like a loose door hinge; the door will wobble."

As the clearance widens, the grinding roller "drifts off course" while crushing coal. Instead of following the liner plate's designated grinding zone, it rubs against the outer edge of the liner. This contact generates severe vibration, akin to a vehicle scraping the curb.

Critical Misdiagnosis Risk: This severe vibration is often mistaken for vibration caused by low coal feed. However, when the roller rubs the liner, it fails to crush coal effectively, resulting in excessive pyrites discharge. The daily rate, normally 5\text{-}8 \text{tons}, can more than double, leading to high fuel waste and cleanup costs.

(II) Bent Hinge Pin (300MG31.11.11): Roller "Sticking" and Irregular Impact

Another power plant reported erratic pulverizer vibration: moments of severe shaking, with amplitudes reaching 0.3 accompanied by a clanking noise, interspersed with periods of relative stability. Inspection revealed the Hinge Pin was bent by 0.3 at its center.

Expert Insight: "The Hinge Pin acts like a carrying pole; frequent overloading will eventually bend it."

Causes: Frequent pulverizer start/stop cycles, foreign metallic objects (tramp iron) in the raw coal, or fluctuating hydraulic pressure can all deform the Hinge Pin. Once deformed, the roller "jams" and cannot adjust its position based on the coal bed thickness. It alternately impacts the liner and spins idly, leading to the irregular vibration.

Vicious Cycle: A bent Hinge Pin accelerates the wear on the Hinge Pin Housing, intensifying the instability until an emergency shutdown is required for major repair.

(III) Seal Aging: Coal Dust Penetration Accelerates Wear

"Many focus only on the Hinge Pin and Housing, but forget the seals," our experts advise. The O-rings and oil seals on the Hinge Pin Assembly act as "dust plugs" to keep coal fines out.

• Lifespan: These seals typically have a lifespan of 8,000 ~ 20,000 operating hours.
• Failure Mode: If not replaced promptly, the seals age and crack, allowing fine coal dust to penetrate the clearance between the Hinge Pin and the Housing.

Impact: "Dust ingress is like pouring sand into the joint; it acts as an abrasive slurry and accelerates wear severely."

Components designed to last tens of thousands of hours may fail in just a few thousand, increasing the clearance and ultimately causing the problematic vibration.

 Hinge Pin Assembly Maintenance "Secrets": 4 Proactive Measures

To prevent these common failures, we recommend adhering to these four maintenance best practices:

1. Strict Adherence to Periodic Disassembly and Inspection:
   • Inspect the Hinge Pin Assembly every 3,000 \text{-} 4,000 operating hours.
   • Use a feeler gauge to check the clearance and a dial indicator to verify the straightness of the Hinge Pin.
   • Inspect seals for aging/cracking to ensure early detection and resolution.
2. Timely and Correct Lubrication:
   • Apply 1 grease per cycle, similar to lubricating a bicycle chain, to minimize frictional wear.
3. Ensure Raw Coal Quality:
   • Before coal enters the pulverizer, ensure tramp iron and large gangue (rejects) are removed.
   • Coal particle size should not exceed 40 to prevent hard objects from damaging or "choking" the Hinge Pin.
4. Optimize Operating Parameters:
   • Keep hydraulic pressure within the specified limits.
   • Maintain stable primary air flow.
   • Avoid frequent pulverizer start-ups and shutdowns to reduce fatigue stress on the Hinge Pin.HKZX-2025-10-29
