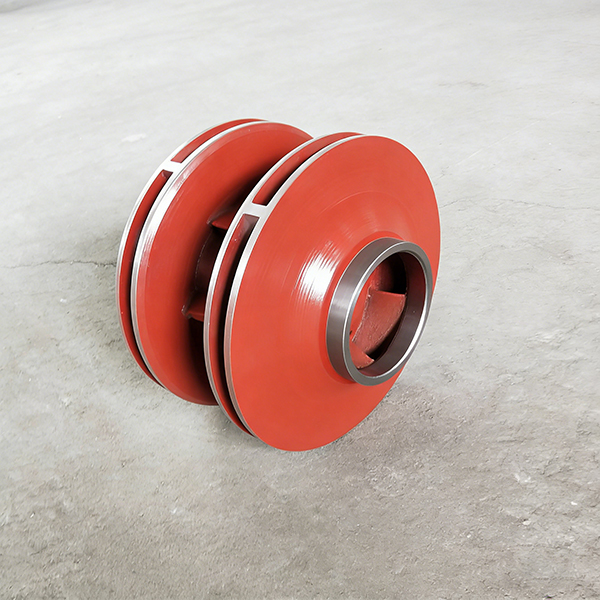

Double Suction Impeller HZB253-640-01-08: Key Control Points for Pump Centering Dimensions

The HZB253-640 booster pump is overhauled, you start it up, and immediately the vibration is high, and the bearings are hot. Plenty of maintenance guys have faced this headache. The root cause often isn't the new impeller itself, but the centering step during assembly. As the heart of the booster pump, the installation accuracy of the HZB253-640-01-08 double suction impeller hinges on one critical dimension—you can't be off by even a tiny bit.

Maintenance Pain Point: Why Does the Pump Shake After Impeller Installation?

The HZB253-640 is a horizontal, single-stage, double-suction pump. The impeller balances axial forces automatically by drawing water from both sides. This design is smart, but only if the impeller is exactly in the center of the pump casing's flow path. Once, during an overhaul at a thermal power plant, they installed the impeller without checking a crucial dimension. When the pump ran, the clearance on one side was only 0.1 mm, while the other side had 0.8 mm. The pump body vibration immediately spiked to 5.2 mm/s, bearing temperature exceeded 85 degrees Celsius, and they had to shut down and redo the work.

The problem is the centering benchmark. This benchmark isn't found by feeling; it's a hard number—the distance from the drive end face of the shaft to the outside face of the impeller lock nut. If you don't measure it before disassembly and just guess during reassembly, the impeller will shift. Then, leaks and wear follow.

Core Dimension: The Life-or-Death Line of plus/minus 0.25 mm

The error on this critical dimension must be tightly controlled within plus/minus 0.25 mm. It's the stabilizer that keeps the impeller centered. Why so strict? Because the balancing advantage of the double suction impeller relies entirely on the symmetry of the flow paths on both sides:

• If the dimension is off, one side's clearance shrinks, high-pressure fluid leakage increases, and volumetric efficiency instantly drops 5 percent to 8 percent.
• As soon as the flow field is asymmetric, hydraulic imbalance triggers vibration, putting extra shock load on the bearings, cutting their lifespan in half.
• In serious cases, the wear rings rub locally, or even seize, scrapping both the seal and the bearings. Losses can range from tens of thousands to hundreds of thousands.

Dongfang SRI, when supplying impellers to power plants, always reminds them: Measure this dimension before disassembly, write it down in the maintenance log, and ideally, mark matching lines on the shaft and nut with a marker. Reassemble according to those marks. One power plant followed our advice, and their vibration dropped from the previous 4.8 mm/s to 2.1 mm/s after the overhaul, meeting the standards perfectly.

On-Site Practice: Don't Skip These Four Steps—Skipping Guarantees Trouble

So, when reinstalling the HZB253-640-01-08 double suction impeller, you must pay close attention to these points. Do not skip a single step:

1. Mark Before Disassembly + Measure Dimension: Double Insurance Use a marker to draw alignment lines on the lock nuts (drive and non-drive side) and the shaft. Then, use a calibrated depth caliper to measure the critical dimension and record it clearly. Don't use a cheap, ordinary caliper; poor accuracy will mess things up. We can provide calibration guidance for specialized measuring tools.
2. Reassembly Dimension Must Be Dead Accurate When installing the impeller, first align the keyway—the shaft key and impeller keyway must be perfectly flush. Don't force it by hammering, or the impeller will shift off-center. As you tighten the lock nut, continuously measure the dimension until it matches the pre-disassembly reading, controlling the deviation within plus/minus 0.25 mm.
3. New Impellers Must Undergo Rotor Dynamic Balancing Even if a new impeller is labeled pre-balanced from the factory, you must perform a rotor dynamic balancing test after assembling it with the pump shaft and shaft sleeves. The standard is a metal removal amount less than or equal to 1.6 mm, with the unbalance sector less than or equal to 10 percent of the circumference. Dongfang SRI's impellers meet the G2.5 balance grade, which is better than the industry standard, but re-testing after on-site assembly is still safer.
4. Don't Mix and Match Spares; Precise Matching is Key Impeller centering is not isolated. The accuracy of matching parts like the lock nut and wear rings must also be up to par. For example, if the lock nut HZB253-640-01-11 has stripped threads and can't be tightened, even the right dimension is useless.

Dongfang SRI: Everything from Impellers to Accessories, We Supply It All

When we make the HZB253-640-01-08 double suction impeller, we don't just supply a chunk of metal. We use high-quality stainless steel, precisely machined according to the original drawings. The blade curve and wear ring dimensions are spot-on. The G2.5 balance grade guarantees consistency from the source. Many power plants tell us that using our impellers cuts their on-site debugging time by 60 percent.

To save you even more trouble, we can supply all matching spare parts. No need to run around comparing prices; all models are perfectly adapted:

Final Reminder: Don't Let Small Details Ruin a Major Overhaul

The stable running of the HZB253-640 booster pump is never left to luck. It relies on the precise control of plus/minus 0.25 mm, and the perfect fit of every spare part. Dongfang SRI gives you a reliable double suction impeller—helping you monitor everything from dimension measurement to dynamic balancing verification.

Whether you need an impeller shipped overnight for an emergency repair or require bulk stocking of matching spares, we respond quickly. Our inventory is sufficient, the quality matches the original, and the price is better. For any assembly questions or spare part needs, contact us anytime, and let your HZB253-640 booster pump run stable immediately and start smoothly.
